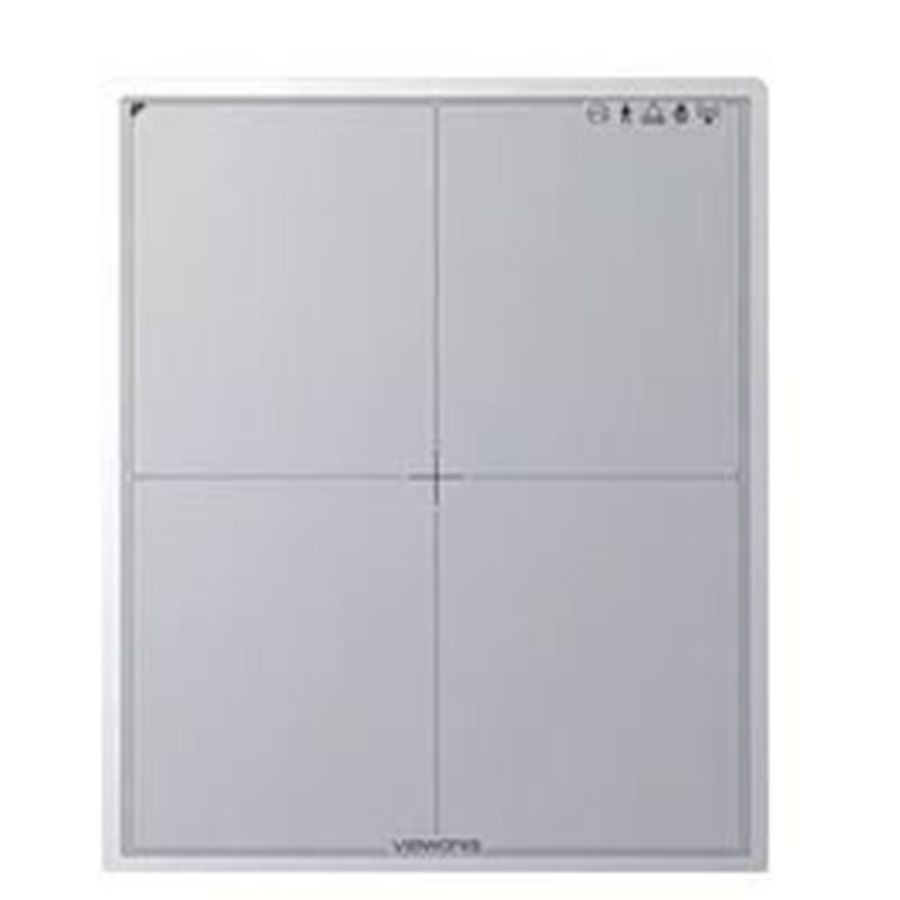

VIVIX-S W Series is a flat panel detector for general radiographic applications using its unique image processing system. With the size the same as that of CR cassette or films, it fits into existing bucky trays. It is easy to acquire and instantly transmit images to the DICOM server through Wi-Fi network. The battery charger can recharge up to 3 batteries at the same time within 2 hours.
| VIVIX-S Detectors: | VIVIX-S 1012W | VIVIX-S 1417W |
|---|---|---|
| Detector size: | 10 x 12″ (24 x 30 cm) | 14 x 17″ (35 x 43 cm) |
| Scintillator: | CsI / GoS | CsI / GoS |
| Connection type: | Wireless or Wired | Wireless |
| Pixel matrix: | 2048 x 2560 | 2560 x 3072 |
| Pixel pitch: | 124 μm | 140 μm |
| Dimensions: | 13.8″ x 11.2″ x 0.6″ | 15″ x 18″ x 0.6″ |
| Weight: | 4.8 lbs. | 7.5 lbs. / 7.3 lbs. |
| Bit depth (A/D): | 16 bit A/D | 14 bit A/D |
| Image display: | 3 sec. / 1.5 sec. | 2 sec. |
| Cycle time: | 15 sec. | 15 sec. |
| Limiting Resolution: | 4 lp/mm | 3.5 lp/mm |
| Battery: | Lithium Ion 3,100 mAh |
Lithium Ion 4,000 mAh |
The VIEWORKS VIVIX-S W SERIES is a wireless flat panel detector built for general radiography. It delivers sharp images and fits seamlessly into existing medical imaging setups.
Healthcare facilities around the world rely on this detector for fast and accurate X-ray imaging. Its portable design and advanced features make it a smart choice for busy clinical environments.
This flat-panel detector uses advanced image processing to produce high-quality X-ray images. It comes in two sizes that match standard CR cassette dimensions for easy bucky tray integration.
The VIVIX-S 1012W measures 10 x 12 inches, while the VIVIX-S 1417W offers a larger 14 x 17-inch format. Both models feature lightweight designs that make them easy to handle during patient exams.
The VIVIX-S W SERIES transfers images through Wi-Fi using dual-band technology. This includes both 2.4GHz and 5GHz options for stable data transmission to your DICOM server.
Users can choose between Cesium Iodide (CsI) and Gadolinium Oxysulfide (GoS) scintillators. Each option provides excellent image quality suited to different clinical needs.
The Anytime automatic exposure detection ensures reliable image capture every time. This feature removes the need for manual sync between the X-ray generator and detector.
The VIVIX-S W SERIES serves many healthcare settings that need portable digital radiography. It works well in hospitals, clinics, urgent care centers, and mobile imaging units.
Common uses include chest X-rays, skeletal imaging, and bedside examinations. The wireless design makes it ideal for patients who cannot easily move to a fixed X-ray room.
The VIVIX-S 1417W provides high spatial resolution with its 140-micron pixel array. This delivers sharp images that help radiologists make accurate diagnoses.
Key technical benefits include:
The lightweight construction reduces physical strain on technologists during mobile exams. The VIVIX-S 1012W weighs just 4.8 pounds, while the larger model stays under 7.5 pounds.
Quick cycle times of fifteen seconds allow for efficient patient throughput. The instant image preview helps technologists confirm proper positioning before the patient leaves.
