The seamless screen with a wide area of 32 inches and a high resolution of 8 million pixels reduces the load of eye movement and provides a comfortable diagnostic imaging environment. Various images such as DR, CT, MRI and pathology can be displayed and it is free to arrange the layout of windows, significantly improving image reading efficiency.
| Manufacturer | JVC |
|---|---|
| Condition | New |
| Screen Technology/Type | 32-inch, color, TFT, IPS technology |
| Screen Size (diagonal) | 32 inches |
| Display Resolution | 3840 x 2160 |
| Pixel Pitch | 0.1845 mm x 0.1845 mm |
| Viewing Angle (H, V) | 178° vertical and horizontal |
| Maximum Luminance | 500 cd/m² (typ.) |
| Calibrated Luminance | 280 cd/m² (calibrated) |
| Contrast Ratio | 1000:1 (typ.) |
| Video Input Connectors | DVI-D x 1, DisplayPort (DisplayPort 1.2) x 2 |
| Video Output Connectors | DisplayPort (DisplayPort 1.2) x 1 |
| Power Input Requirements | 100V – 240 V 50/60 Hz |
| Dimensions with Stand (W x H x D) | 742 mm x 487.5~582.5 mm x 196.5 mm |
| Net Weight with Stand | approx. 10 kg |
| Mounting Options | VESA standard (100 mm x 100 mm) |
| Certifications | ANSI/AAMI ES60601-1 (2005) + A1 (2012), CAN/CSA-C22.2 No. 60601-1 (2014), CE (EN60601-1, EN60601-1-2), FCC Part15 subpart B Class B, ICES-003-B, VCCI-B, FDA510(k), J-Moss, RoHS, RCM |
| Supplied Accessories | Power cord, DVI cable, DisplayPort cable, USB cable, Instruction manual, Software (QA Medivisor Agent LE) |

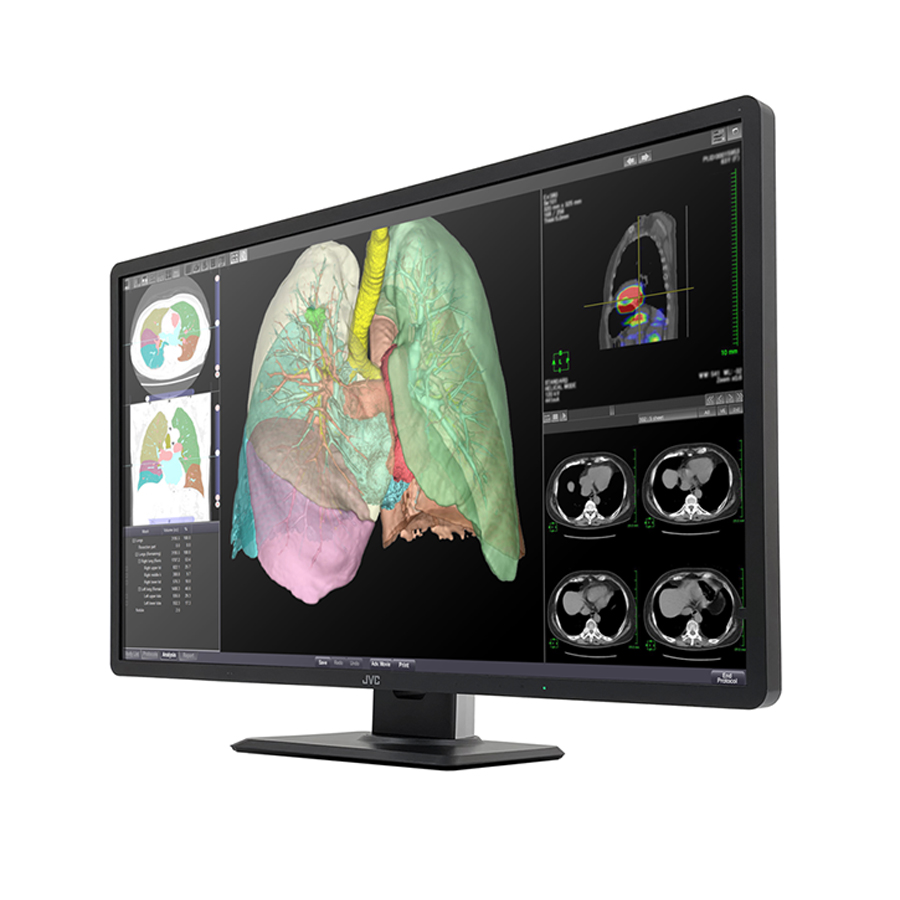

The JVC CL-R813 8MP 32″ Color Monitor Wide is a high-end display built for medical imaging. It combines a large screen with sharp resolution to help radiologists read images with ease.
This monitor uses IPS technology to deliver true colors and wide viewing angles. Healthcare facilities trust this display for its reliable performance in busy clinical settings.
JVC designed this monitor to handle demanding diagnostic tasks in hospitals and imaging centers. The seamless screen design creates a clean viewing area without distracting borders.
The 32-inch screen offers 8 million pixels at 3840 x 2160 resolution. This high pixel density allows doctors to see fine details in medical scans.
With a contrast ratio of 1000:1 and calibrated brightness of 280 cd/m², images appear sharp and clear. The 178-degree viewing angle ensures accurate colors from any position.
The monitor includes two DisplayPort 1.2 inputs and one DVI-D connection. It also features a DisplayPort output for daisy-chaining multiple displays.
Medical professionals use this monitor for reading DR, CT, MRI, and pathology images. The wide screen lets users arrange multiple image windows side by side.
Radiology departments benefit from its flexible layout options that speed up image reading. Pathology labs also rely on their color accuracy for tissue sample analysis.
Orthopedic specialists can view detailed bone scans with exceptional clarity on this display. Oncology teams use it to study complex imaging studies during treatment planning sessions.
The large 32-inch display reduces the need for constant eye movement during long reading sessions. Doctors can work longer without feeling tired.
The ability to display multiple images at once cuts down on switching between windows. This feature helps radiologists complete their work faster.
The JVC CL-R813 holds FDA 510(k) clearance and CE certification. It also meets ANSI/AAMI ES60601-1 safety standards for medical electrical equipment.
Unlike regular computer monitors, the JVC CL-R813 meets strict medical imaging standards. Standard displays lack the calibration needed for accurate diagnosis.
Medical-grade monitors like this one undergo factory calibration and include quality control software. This ensures consistent image quality throughout the monitor’s lifespan.
Consumer displays may look similar, but cannot maintain the brightness and color accuracy that diagnostic work demands. The JVC CL-R813 provides the precision that patient care requires.
