The seamless screen with a wide area of 30.9 inches and a high resolution of 12 million pixels reduces the load of eye movement and provides a comfortable diagnostic imaging environment. Not only two windows side-by-side for mammography images but also other various images such as CT, MRI, ultrasound and pathology can be displayed, and it is free to arrange the layout of windows.
| Manufacturer | JVC |
|---|---|
| Condition | New |
| Screen Technology/Type | TFT, IPS technology |
| Screen Size (diagonal) | 30.9-inch, color |
| Display Resolution | 4200 x 2800 |
| Pixel Pitch | 0.1554 mm × 0.1554 mm |
| Viewing Angle (H, V) | 178° vertical and horizontal |
| Maximum Luminance | 1200 cd/m² (typ.) |
| Calibrated Luminance | 600 cd/m² (calibrated) |
| Contrast Ratio | 1500 : 1 (typ.) |
| Video Input Connectors | DisplayPort (DisplayPort 1.4a compliant) x 2 |
| Power Input Requirements | 100V-240V/50?60Hz |
| Power Consumption | 95W (typ.) |
| Dimensions with Stand (W x H x D) | 689.4 mm × 509.9~604.9 mm × 224.9 mm |
| Net Weight with Stand | approx. 15.6 kg |
| Mounting Options | Tilt, Swivel, VESA standard (100 mm x 100 mm) |
| Certifications | 510(k), ANSI/AAMI ES60601-1 (2005) + A1 (2012), CAN/CSA-C22.2 No. 60601-1 (2014), CE (EN60601-1, EN60601-1-2), RCM, FCC Part15 subpart B Class B, ICES-003-B, VCCI-B, FDA510(k), J-Moss, RoHS, EAC, RCM |
| Supplied Accessories | Power cord, DisplayPort cable, USB cable, Operation manual, Installation manual, Software (QA Medivisor Agent LE) |
| Modality | Mammography
|
Accurate diagnosis starts with a clear, detailed display. Radiologists and clinicians rely on high-quality monitors to detect subtle abnormalities in medical images.

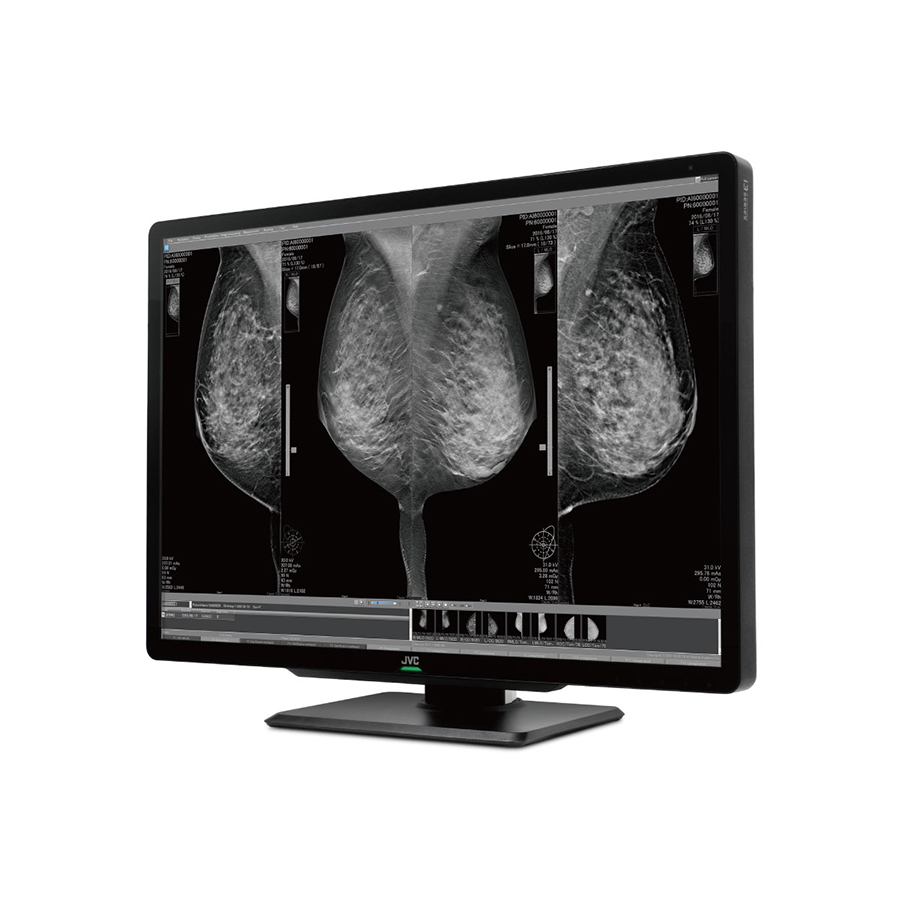

The JVC CL-S1200 12MP 30.9″ COLOR MONITOR delivers the resolution and precision that modern healthcare facilities require. This guide covers its features, applications, and benefits to help you make an informed decision.
The JVC CL-S1200 is a premium diagnostic display designed for demanding medical environments. Its 30.9-inch seamless screen provides 12 million pixels for exceptional image clarity.
This monitor uses advanced IPS technology with a 4200 x 2800 resolution. The wide viewing angle of 178 degrees ensures consistent image quality from any position in the room.
The monitor achieves a maximum brightness of 1200 cd/m² with a calibrated setting of 600 cd/m². Its contrast ratio of 1500:1 provides excellent image depth for detecting subtle differences in tissue density.
Two DisplayPort 1.4a connections allow flexible integration with existing systems. The VESA-compatible mounting system supports tilt and swivel adjustments for ergonomic positioning.
The compact pixel pitch of 0.1554 mm ensures sharp text and fine details. This precision helps radiologists identify small abnormalities that might otherwise go unnoticed.
This monitor excels in mammography imaging with its side-by-side window display capability. Radiologists can view and compare multiple images without switching between screens.
The display also supports CT, MRI, ultrasound, and pathology imaging workflows. Users can arrange window layouts freely to match their specific diagnostic preferences.
The large screen area reduces the need for scrolling or zooming during image review. This streamlined workflow helps clinicians work faster and more accurately.
The seamless screen design reduces eye strain during extended diagnostic sessions. Fewer eye movements across screen borders lead to faster reviews and improved reading accuracy.
Key advantages include:
The JVC CL-S1200 holds FDA 510(k) clearance for primary diagnostic imaging. It meets ANSI/AAMI ES60601-1 safety standards required for medical electrical equipment.
Additional certifications include CE marking, FCC Part 15 Class B, and RoHS compliance. These approvals confirm that the monitor meets strict healthcare industry and environmental requirements.
The included QA Medivisor Agent LE software simplifies quality assurance tasks. Regular calibration keeps the display performing at optimal levels throughout its lifespan.
