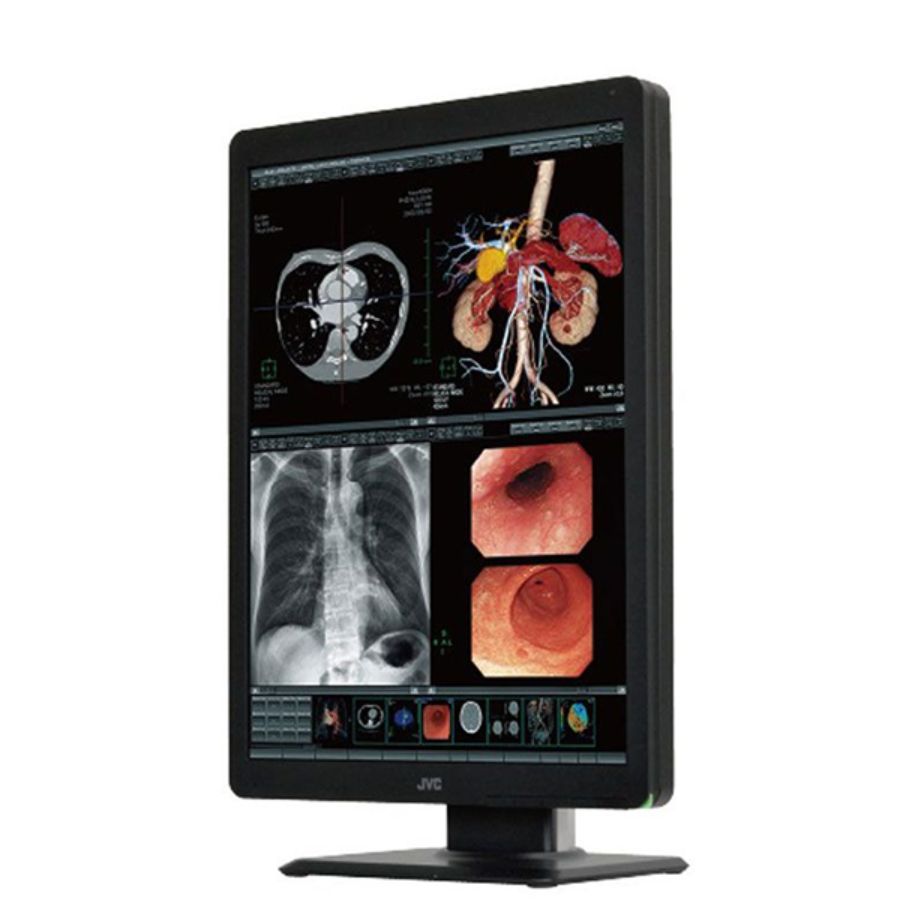

JVC CL-R211 premium design and highly cost effective 2MP color monitor in pursuit of enhanced functions.
| Manufacturer | JVC |
|---|---|
| Display Resolution | 1200×1600 |
| Screen Technology/Type | 21.3″ color TFT IPS technology |
| Screen Size (diagonal) | 21.3 Inches |
| Pixel Pitch | 0.270 mm x 0.270 mm |
| Viewing Angle (H, V) | 178° vertical and horizontal |
| Maximum Luminance | 500 cd/m² (typ.) |
| Calibrated Luminance | 280 cd/m² (typ.) |
| Contrast Ratio | 1800:1(typ. |
| Video Input Connectors | DVI-D (DVI 1.0 compliant), DisplayPort (DisplayPort 1.2a compliant) |
| Power Input Requirements | 100V-240V 50/60Hz |
| Power Consumption | 45W (typ.) max. |
| Dimensions with Stand (W x H x D) | Landscape: 493 mm × 451.3 / 546.3 mm × 196.5 mm, Portrait: 361.5 mm × 517 / 612 mm × 196.5 mm |
| Net Weight with Stand | 8.9 kg |
| Mounting Options | VESA standard (100 mm x 100 mm) |
| Certifications | ANSI/AAMI ES60601-1(2005)+A1(2012), CAN/CSA-C22.2 No.60601-1(2014), CE(EN60601-1, EN60601-1-2), RCM, FCC Part15 subpart B Class B, ICES-003-B, VCCI-B, FDA510(k), J-Moss, RoHS |
The JVC CL-R211 LCD Medical Monitor Display brings professional-grade imaging quality to healthcare facilities at a competitive price point. This 21.3-inch color monitor combines advanced IPS technology with reliable performance for daily diagnostic work. Medical facilities looking to upgrade their imaging capabilities will find this display offers excellent clarity and consistent results. As a trusted medical imaging equipment supplier, we understand the importance of reliable displays in clinical settings. The CL-R211 delivers the precision healthcare professionals need for accurate diagnoses while maintaining cost-effectiveness for facilities of all sizes.
The JVC CL-R211 uses IPS panel technology to deliver superior image quality. This technology ensures colors remain accurate from every viewing angle, which matters during team consultations and teaching sessions.
The display features a 2-megapixel resolution with 1200×1600 pixels for sharp, detailed images. Medical professionals can examine fine details clearly, making it ideal for reviewing X-rays, CT scans, and other diagnostic images.
The monitor provides 500 cd/m² maximum luminance for bright, clear images even in well-lit rooms. Calibrated luminance sits at 280 cd/m², which maintains consistency across long viewing sessions without causing eye strain.
With a contrast ratio of 1800:1, the display shows excellent differentiation between light and dark areas. This high contrast helps radiologists spot subtle variations that might indicate important diagnostic information.
Radiology departments use the CL-R211 for reviewing general X-ray images and basic diagnostic work. The monitor handles routine imaging tasks efficiently, supporting daily patient care needs.
Emergency departments benefit from quick image review capabilities during urgent patient evaluations. The display boots up quickly and maintains stable performance throughout demanding shifts.
The 178-degree viewing angle means multiple healthcare providers can view images simultaneously without color distortion. This feature proves valuable during consultations when several specialists need to review the same diagnostic images.
Installation flexibility comes from VESA mounting compatibility, allowing wall-mounting or articulating arm attachment. Facilities can configure their workspace to maximize efficiency and ergonomics.
The display meets strict medical device standards, including FDA 510(k) clearance and CE certification. These certifications confirm the monitor’s safety and performance for clinical use in healthcare environments.
Power efficiency stays reasonable at 45 watts maximum consumption during operation. Lower energy use reduces operating costs over the display’s lifespan while supporting environmental sustainability goals.
Regular calibration ensures the display continues delivering accurate image representation over time. Many facilities schedule quarterly calibrations to maintain consistent diagnostic quality.
The monitor accepts DVI-D and DisplayPort connections for flexible integration with existing imaging systems. These standard inputs make the CL-R211 compatible with most PACS workstations and medical imaging equipment.
The compact design measures 493mm wide by 451.3mm high with the stand attached. This footprint fits comfortably on standard workstation desks without overwhelming limited space.
Portrait and landscape orientations both work well, letting facilities choose the best configuration for their workflow. Radiologists often prefer portrait mode for viewing full-length spine or leg studies.
The JVC CL-R211 LCD Medical Monitor Display provides excellent value for facilities, balancing budget constraints with quality requirements. As a diagnostic imaging equipment dealer, we recognize that cost-effective solutions help healthcare providers serve more patients.
The monitor’s reliability reduces downtime and maintenance costs over its operational life. Facilities appreciate equipment that performs consistently without frequent service calls or replacement needs.
At Spectrum Medical Imaging Co., we combine four decades of industry experience with an unwavering commitment to customer satisfaction. Our position as a preferred diagnostic imaging equipment dealer means we secure competitive pricing from manufacturers and pass those savings directly to you.
We provide comprehensive support from initial consultation through installation and ongoing service. Our team understands medical imaging workflows and helps facilities choose equipment that genuinely improves patient care while respecting budget realities.
Ready to upgrade your imaging capabilities with the JVC CL-R211 LCD Medical Monitor Display? Contact our medical imaging equipment supplier team today and discover how we can help you deliver better diagnostic services to your patients.
