MS-S300 comes with 1,000 cd/? calibration to make it the best solution for diagnostic imaging of DR, CT, MRI etc. The brighter screen dramatically increases the number of perceptual grayscale steps to improve visibility of structures. Diagnostic reading will be much more efficient.
| Manufacturer | JVC |
|---|---|
| Condition | New |
| Screen Technology/Type | 21.3-inch, monochrome, TFT, IPS technology |
| Screen Size (diagonal) | 324 mm x 433 mm |
| Display Resolution | 1536 x 2048(Independent Sub-pixel Drive technology ON : 1536 x 6144) |
| Pixel Pitch | 0.2115 mm x 0.2115 mm |
| Viewing Angle (H, V) | 178° vertical and horizontal |
| Maximum Luminance | 2000 cd/m² (typ.) |
| Calibrated Luminance | 500 cd/m² / 1000 cd/m² (calibrated) |
| Contrast Ratio | 1500:1 (typ.) |
| Video Input Connectors | DVI-D (DVI 1.0 compliant) DisplayPort (DisplayPort 1.2a compliant) |
| Power Input Requirements | 100V – 240 V 50/60 Hz |
| Power Consumption | 35W (typ.) |
| Dimensions with Stand (W x H x D) | Landscape : 493 mm x 451.3 / 546.3 mm x 196.5 mm Portrait : 361.5 mm x 517 / 612 mm x 196.5 mm |
| Net Weight with Stand | approx. 10.2 kg |
| Mounting Options | VESA standard (100 mm x 100 mm) |
| Certifications | ANSI/AAMI ES60601-1 (2005) + A1 (2012), CAN/CSA-C22.2 No. 60601-1 (2014), CE (EN60601-1, EN60601-1-2), RCM, FCC Part15 subpart B Class B, ICES-003-B, VCCI-B, J-Moss, RoHS, EAC |
| Modality | Diagnostic |

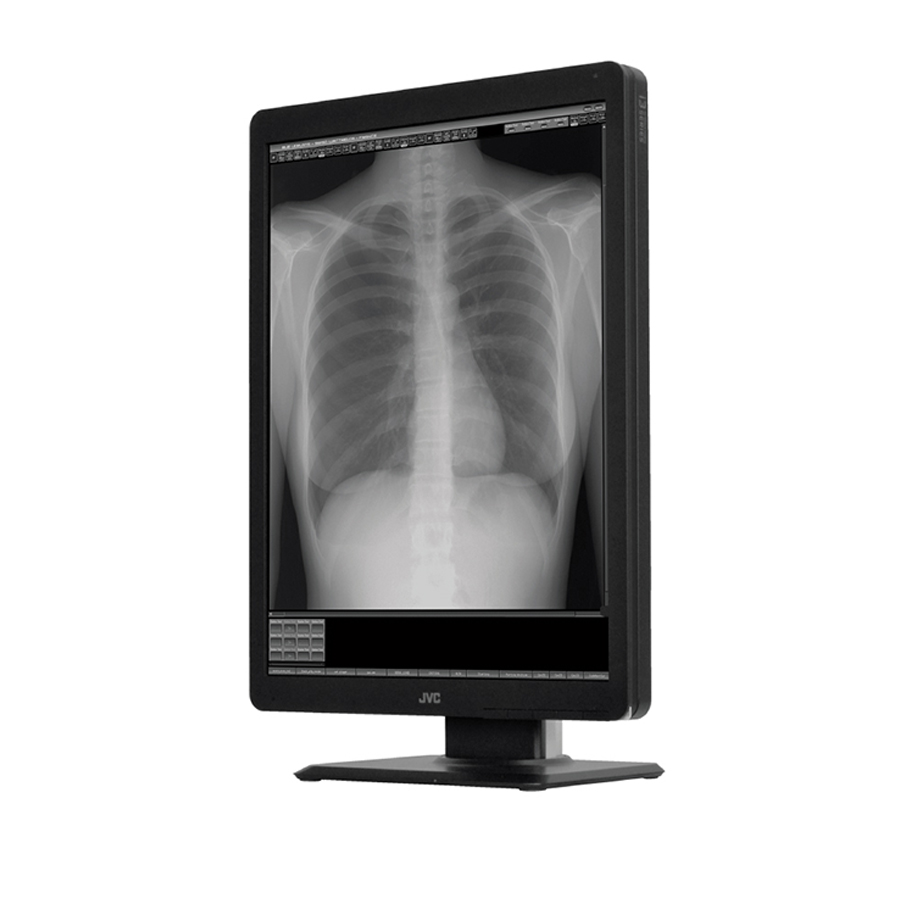

Accurate imaging is vital in healthcare. The JVC MS-S300 3MP 21.3″ Monochrome Monitor delivers the clarity and precision that medical professionals need for confident diagnoses.
This advanced diagnostic display combines high resolution with exceptional brightness for superior image quality. Whether reading X-rays, CT scans, or MRI results, this monitor helps clinicians detect even the smallest details.
The JVC MS-S300 is a high-performance diagnostic display designed for medical imaging. It uses advanced IPS technology to produce sharp, detailed images across its 21.3-inch screen.
This monitor offers a 3-megapixel resolution with a display size of 1536 x 2048 pixels. Its bright screen and wide viewing angles make it ideal for reading digital radiography, CT scans, and MRI images.
Medical professionals choose monochrome displays because they show grayscale images with greater accuracy. The JVC MS-S300 excels at displaying the subtle differences needed for proper diagnosis.
Radiologists rely on clear visuals to detect abnormalities. The JVC MS-S300 supports accurate readings of X-rays, CT scans, and MRI results with exceptional grayscale performance.
Healthcare facilities use this monitor for everyday diagnostic tasks. Its bright display helps doctors see fine details that may otherwise go unnoticed.
Orthopedic, cardiology, and oncology specialists benefit from the monitor’s high contrast ratio. This clarity helps them make better treatment decisions based on precise imaging.
The JVC MS-S300 features a maximum luminance of 2000 cd/m² and calibrated brightness options. This bright screen increases visible grayscale steps and improves the detection of subtle structures.
Key advantages include:
The monitor uses TFT IPS technology with a pixel pitch of 0.2115 mm. It supports both portrait and landscape orientations, making it adaptable to various workspace setups.
Power consumption is efficient at just 35W. The unit weighs around 10.2 kg with its stand and meets major certifications, including CE, FCC, and medical safety standards.
Medical displays must meet strict regulatory standards. The JVC MS-S300 holds certifications from ANSI/AAMI, CAN/CSA, and European CE requirements for medical electrical equipment.
These certifications ensure the monitor performs safely in clinical environments. Healthcare facilities can trust that this display meets the highest industry standards for diagnostic imaging.
