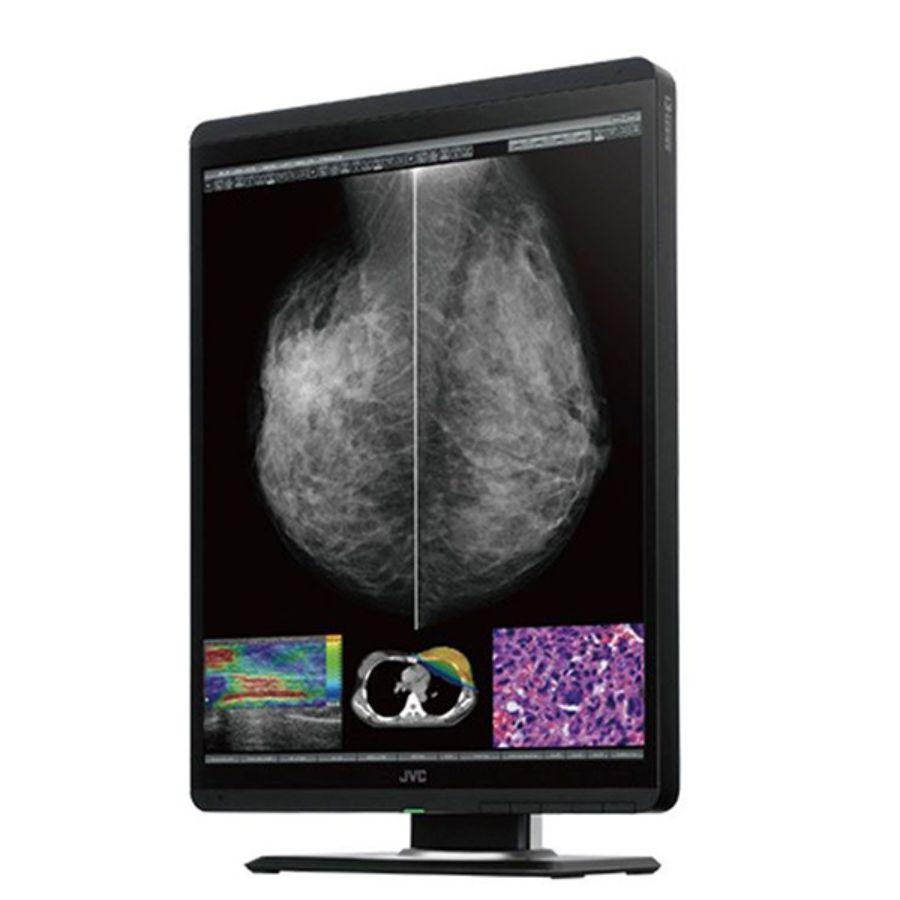

5MP Color JVC CL-S500 Mammography Monitor Display Super High bright & High contrast image quality for Breast image diagnosis.
The JVC CL-S500 can accommodate images from any modality including Digital Mammography/Tomosynthesis, US, CT, MRI and pathology.
| Display Resolution | 2048 x 2560 |
|---|---|
| Screen Technology/Type | color, TFT, IPS technology |
| Screen Size (diagonal) | 21.3-inch |
| Pixel Pitch | 0.165 mm x 0.165 mm |
| Viewing Angle (H, V) | 178° vertical and horizontal |
| Contrast Ratio | 2000:1 (typ.) |
| Video Input Connectors | DVI-D (DVI 1.0 compliant), DisplayPort (DisplayPort 1.2a compliant) |
| Power Input Requirements | 100V – 240 V 50/60 Hz |
| Power Consumption | 80W (typ.) |
| Dimensions with Stand (W x H x D) | Landscape : 493 mm x 451.3 / 546.3 mm x 196.5 mm, Portrait : 361.5 mm x 517 / 612 mm x 196.5 mm |
| Net Weight with Stand | approx. 9.5 kg |
| Mounting Options | VESA standard (100 mm x 100 mm) |
| Certifications | ANSI/AAMI ES60601-1 (2005) + A1 (2012), CAN/CSA-C22.2 No. 60601-1 (2014), CE (EN60601-1, EN60601-1-2), RCM, FCC Part15 subpart B Class B, ICES-003-B, VCCI-B, J-Moss, RoHS |
Breast cancer screening relies on clear and accurate imaging. The JVC Mammography CL-S500 Monitor delivers the high-quality display needed for confident diagnoses. This 5MP color monitor is designed to meet the demands of modern mammography and tomosynthesis workflows. Healthcare facilities need reliable equipment to support early detection and improve patient outcomes. Choosing the right display from a trusted medical imaging equipment supplier makes a real difference in diagnostic accuracy. The CL-S500 offers advanced features that help radiologists spot even the smallest details in breast images. Its super high brightness and contrast bring clarity to every scan.
The JVC Mammography CL-S500 Monitor is a 21.3-inch color display built for diagnostic imaging. It uses advanced IPS technology with a resolution of 2048 x 2560 pixels for sharp image clarity.
This monitor supports images from multiple modalities, including digital mammography and tomosynthesis. It also handles ultrasound, CT, MRI, and pathology images with excellent accuracy.
The CL-S500 features super high brightness and a 2000:1 contrast ratio. These specs ensure clear visibility of fine details in breast tissue imaging.
The monitor offers 178-degree viewing angles in both vertical and horizontal directions. This allows radiologists to view images accurately from different positions.
The display includes both DVI-D and DisplayPort inputs for easy integration. It works with standard 100-240V power supplies, making installation simple.
The JVC Mammography CL-S500 Monitor helps radiologists make accurate diagnoses with confidence. Its high-quality display reduces the chance of missing critical findings in breast tissue.
The monitor’s multi-modality support means facilities can use one display for various imaging needs. This saves valuable space and reduces overall equipment costs for busy imaging centers.
This monitor works best in mammography reading rooms and dedicated breast imaging centers. It meets the strict certification standards required for primary diagnostic breast imaging.
Hospitals and outpatient imaging centers use the CL-S500 for primary diagnosis and second opinions. The display also supports training programs and continuing education for radiology staff members.
The CL-S500 supports VESA mounting with a standard 100mm x 100mm pattern. Facilities can mount it on walls or use the included adjustable stand.
The monitor weighs about 9.5 kg with its stand and fits in both landscape and portrait modes. Setup is quick with the right support from a diagnostic imaging equipment dealer.
At Spectrum Medical Imaging Co., we have served the healthcare industry for over 40 years. We understand what imaging centers need to deliver excellent patient care.
We offer the JVC Mammography CL-S500 Monitor at competitive prices with fast nationwide shipping. Our team provides expert support from selection through installation and beyond. Contact us today at 1-800-859-6162 to discuss your mammography display needs. Let us help you equip your facility with the best imaging technology available.
