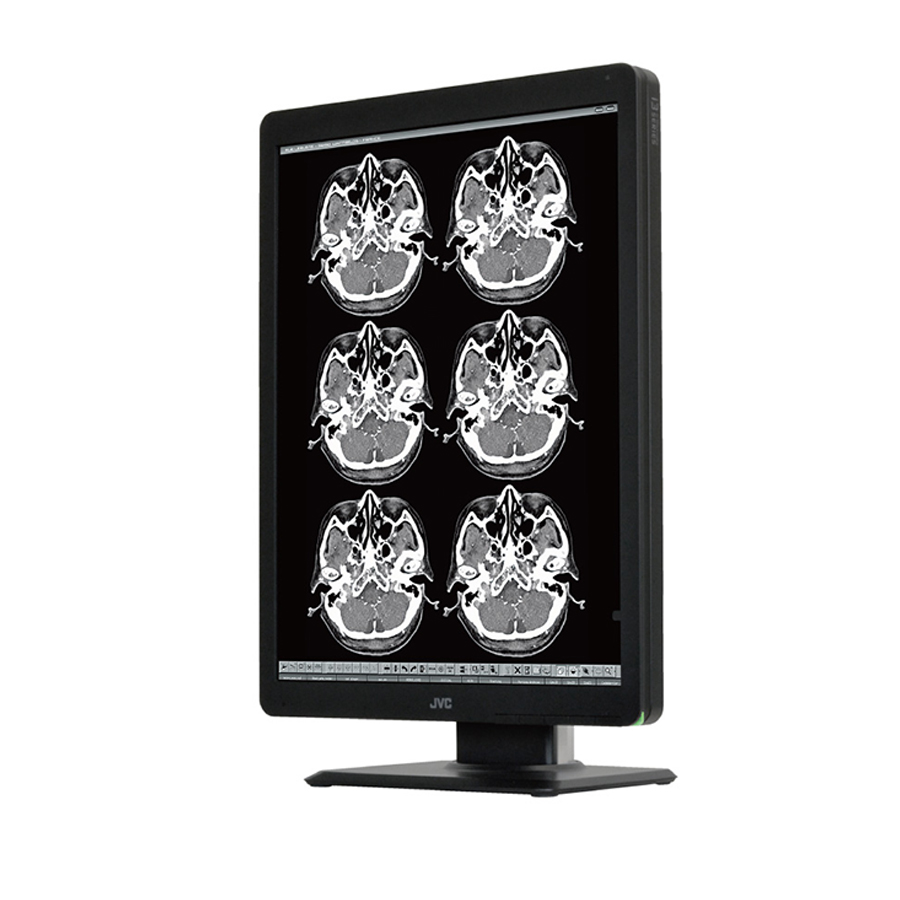

JVC MS-S200 2MP 21.3″ MONOCHROME MONITOR

The MS-S200 is a high luminance & high contrast 2MP monochrome monitor for diagnostic imaging. The MS-S200 comes with an 1800:1 contrast ratio to make it the best solution for diagnostic viewing of DR, CT, and MRI images. The brighter screen dramatically increases the number of perceptual grayscale steps to improve the visibility of structures and make diagnostic reading much more efficient. One of its unique technologies, the built-in sensor, ensures that the monitor constantly performs at its best.
Technology: 21.3-inch, monochrome, TFT, IPS technology
Display Area: 324 mm x 432 mm
Pixel Pitch: 0.270 mm × 0.270 mm
Contrast Ratio: 1800 : 1 (typ.)
Maximum Luminance: 1900 cd/m² (typ.), 500 cd/m² (calibrated)
Viewing Angle: 178° vertical and horizontal
Native Resolution: 1200 x 1600 (Independent Sub-pixel Drive technology ON : 1200 x 4800)
Display Colors: 256 shades of grayscale are simultaneously displayed from a palette of 16,369 grayscale steps
SKU JVC-MS-S200 Category

Related Products

JVC CL-S600 6MP 30″ COLOR MONITOR
JVC-CL-S600
JVC CL-S1200 12MP 30.9″ COLOR MONITOR
JVC-CL-S1200
JVC Mammography MS-S500
jvc-mammography-ms-s500-monitor
Eizo Diagnostic Displays
eizo-diagnostic-displays

Clear and accurate images are essential for medical diagnosis. The JVC MS-S200 2MP 21.3″ Monochrome Monitor delivers the quality healthcare facilities need.

This professional-grade display helps radiologists detect even the smallest details in medical scans. It combines high brightness and sharp contrast to support confident diagnostic decisions.

Understanding the JVC MS-S200 Monochrome Monitor

The JVC MS-S200 2MP 21.3″ Monochrome Monitor is a high-performance display built for diagnostic imaging. It features a 21.3-inch screen with advanced TFT IPS technology for sharp and clear visuals.

This monitor offers a native resolution of 1200 x 1600 pixels. Its Independent Sub-pixel Drive technology enhances the display for even better image detail.

Exploring Key Features and Specifications

Display Quality

The monitor offers an impressive contrast ratio of 1800:1, enabling radiologists to discern fine details in DR, CT, and MRI images.

It delivers a maximum brightness of 1900 cd/m² with a calibrated setting of 500 cd/m². The brighter screen helps medical professionals spot subtle structures more easily.

Viewing Performance

The wide 178-degree viewing angle ensures consistent image quality from any position. Medical staff can view the screen clearly without having to adjust their position.

The display shows 256 shades of grayscale from a palette of over 16,000 grayscale steps. This range creates smooth transitions between different tissue densities on medical scans.

Discovering Clinical Applications

Healthcare facilities use this monitor for reading digital radiography images. It is ideal for reviewing CT scans and MRI studies in diagnostic settings.

The monitor works well in radiology departments and imaging centers. Clinics and hospitals rely on it for daily diagnostic reading tasks.

Orthopedic practices benefit from its sharp bone imaging display. Emergency departments also use it for quick and accurate trauma assessments.

Recognizing Benefits for Healthcare Facilities

A built-in sensor keeps the monitor performing at its best over time. This feature ensures consistent image quality without constant manual adjustments.

The high brightness makes reading sessions more comfortable and efficient. Radiologists can review more cases with less eye strain throughout their shifts.

The JVC MS-S200 is designed for long-lasting performance in busy clinical settings. Its durable construction reduces downtime and lowers maintenance costs.

  • Reliable performance for high-volume diagnostic workloads
  • Consistent image quality across the entire display
  • Easy integration with existing PACS and imaging systems
  • Durable design built for continuous clinical use

Choosing the Right Diagnostic Imaging Equipment Dealer

Working with a trusted medical imaging equipment supplier matters for your investment. The right partner provides quality products along with expert support and service.

A reliable diagnostic imaging equipment dealer offers competitive pricing and fast delivery. They also provide installation help and ongoing technical assistance when you need it.

Partnering with Spectrum Medical for Your Imaging Needs

At Spectrum Medical Imaging Co., we have served healthcare providers for over 40 years. We are your trusted medical imaging equipment supplier committed to quality and customer care.

We offer the JVC MS-S200 2MP 21.3″ Monochrome Monitor at competitive prices with fast nationwide shipping. Our expert team provides the support you need from purchase to installation and beyond. Call us today at 1-800-859-6162 to discuss your diagnostic imaging needs and get started.
