MS-S500 comes with 1,000 cd/? calibration to make it the best solution for breast image diagnosis. With a maximum luminance of 3000 cd/?, a long lifetime is secured even in this preset. The brighter screen dramatically increases the number of perceptual grayscale steps to improve the visibility of microcalcifications, tumors, and structures.
| Display Resolution | 2048 x 2560 |
|---|---|
| Screen Technology/Type | monochrome TFT IPS technology |
| Screen Size (diagonal) | 21.3-inch |
| Pixel Pitch | 0.165 mm x 0.165 mm |
| Viewing Angle (H, V) | 178? vertical and horizontal |
| Contrast Ratio | 2000:1 (typ.) |
| Video Input Connectors | DVI-D (DVI 1.0 compliant), DisplayPort (DisplayPort 1.2a compliant) |
| Power Input Requirements | 100V ? 240 V 50/60 Hz |
| Power Consumption | 80W (typ.) |
| Dimensions with Stand (W x H x D) | Landscape : 493 mm x 451.3 / 546.3 mm x 196.5 mm, Portrait : 361.5 mm x 517 / 612 mm x 196.5 mm |
| Net Weight with Stand | approx. 9.5 kg |
| Mounting Options | VESA standard (100 mm x 100 mm) |
| Certifications | ANSI/AAMI ES60601-1 (2005) + A1 (2012), CAN/CSA-C22.2 No. 60601-1 (2014), CE (EN60601-1, EN60601-1-2), RCM, FCC Part15 subpart B Class B, ICES-003-B, VCCI-B, J-Moss, RoHS |

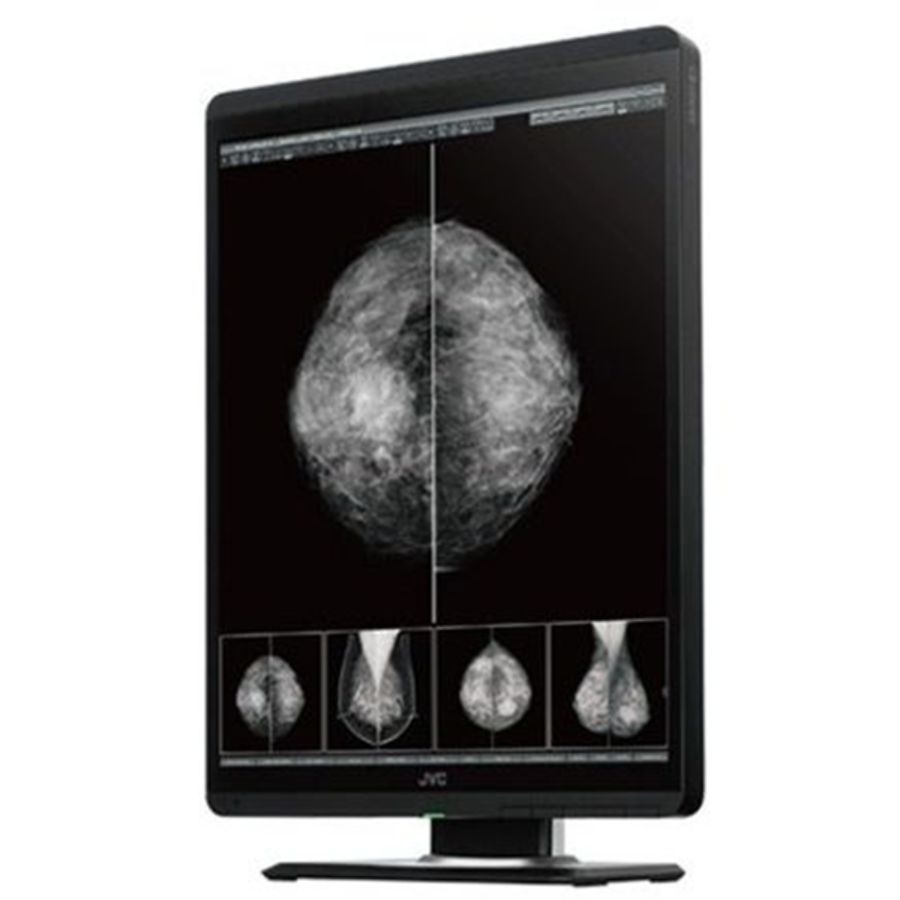

Breast cancer remains one of the most common health concerns for women around the world. Early detection plays a key role in improving patient outcomes, and that process starts with high-quality diagnostic tools. The JVC Mammography MS-S500 is a specialized medical monitor built specifically for breast image diagnosis. It offers sharp resolution, bright display settings, and reliable performance that radiology professionals depend on every day. This 21.3-inch monochrome display is designed to help detect small details like microcalcifications and tumors with precision. Choosing the right diagnostic imaging equipment dealer ensures you get the best support, service, and value for your investment.
The JVC Mammography MS-S500 is a 5-megapixel medical-grade monitor made for mammography reading. It uses monochrome TFT IPS technology to produce clear, consistent images across the entire screen.
This display features a resolution of 2048 x 2560 pixels, which shows fine details in breast tissue. With a pixel pitch of 0.165 mm, radiologists can view even the smallest abnormalities with ease.
The MS-S500 comes with 1,000 cd/m² calibration for accurate brightness. It also supports a maximum luminance of 3,000 cd/m², ensuring a long display lifespan.
This monitor offers 178-degree viewing angles both vertically and horizontally. It’s 2000:1 contrast ratio delivers deep blacks and bright whites for better image clarity.
The display includes DVI-D and DisplayPort inputs for easy connection. These ports support modern imaging systems used in hospitals and clinics.
Brighter screens increase the number of visible grayscale steps for radiologists. This helps improve the detection of microcalcifications, tumors, and subtle structures in breast tissue.
The IPS panel ensures color accuracy remains stable even when viewed from different angles. Radiologists can trust what they see, no matter where they sit.
Understanding the full specs helps you make an informed decision. Here are the main technical details:
The MS-S500 works best in mammography reading rooms and dedicated breast imaging centers. It is also suitable for radiology departments that require high-resolution diagnostic displays for accurate readings.
Hospitals, outpatient clinics, and mobile imaging units all benefit from this monitor. Its compact size and flexible mounting options make installation simple.
At Spectrum Medical Imaging Co., we have proudly served the diagnostic imaging industry for over 40 years. We are a trusted medical imaging equipment supplier and diagnostic imaging equipment dealer with nationwide reach and a loyal client base.
We offer same-day shipping, expert technical support, and competitive pricing on the JVC Mammography MS-S500 and other imaging solutions. Call us today at 1-800-859-6162 to speak with our knowledgeable team and place your order.
