High Luminance & high contrast 6MP color monitor for diagnostic imaging
High Luminance & high contrast 6MP color monitor for diagnostic imaging
| Manufacturer | JVC |
|---|---|
| Condition | New |
| Screen Technology/Type | 30-inch, color, TFT, IPS technology |
| Screen Size (diagonal) | 30-inch |
| Display Resolution | 3280 × 2080 |
| Pixel Pitch | 0.197 mm × 0.197 mm |
| Viewing Angle (H, V) | 178° vertical and horizontal |
| Maximum Luminance | 1300 cd/m² (typ.) |
| Calibrated Luminance | 600 cd/m² (calibrated) |
| Contrast Ratio | 2000:1 (typ.) |
| Video Input Connectors | DisplayPort (DisplayPort 1.4) × 2 |
| Power Input Requirements | 100V – 240 V 50/60 Hz |
| Power Consumption | 80 W (typ.) |
| Dimensions with Stand (W x H x D) | 689.4 mm × 509.9 (604.9) mm × 224.9 mm |
| Dimensions without Stand (W x H x D) | 689.4 mm × 475.6 (484.9) mm × 85.7 mm |
| Net Weight with Stand | approx. 15.1 kg |
| Mounting Options | VESA standard (100 mm x 100 mm) |
| Certifications | ANSI/AAMI ES60601-1 (2005) + A1 (2012), CAN/CSA-C22.2 No. 60601-1 (2014), CE (EN60601-1, EN60601-1-2), FCC Part15 subpart B Class B, ICES-003-B, VCCI-B, FDA510(k), J-Moss, RoHS, RCM |
| Supplied Accessories | Power cord, DisplayPort cable, USB cable, Operation manual, Installation manual, Software (QA Medivisor Agent LE) |
Modern healthcare relies on sharp, clear images for accurate diagnoses. Every detail matters when radiologists examine scans to detect diseases and guide treatment decisions.

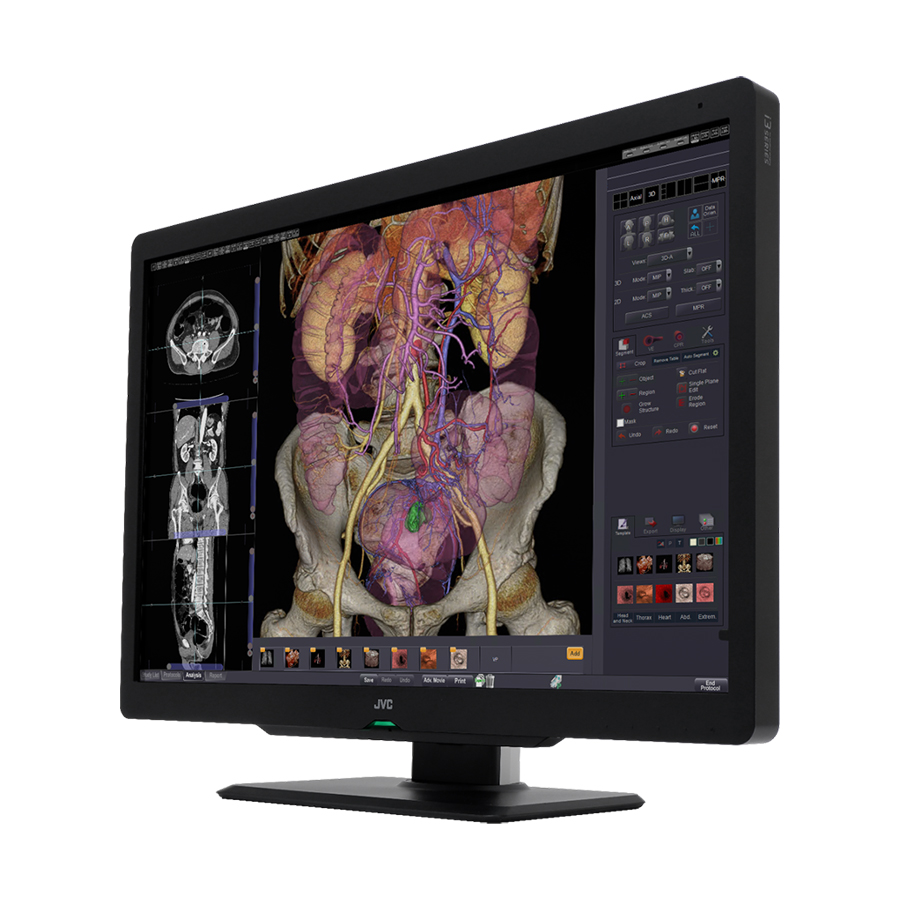

The JVC CL-S600 6MP 30° COLOR MONITOR delivers the high-quality visuals that medical professionals need every day. This advanced diagnostic display combines superior resolution with reliable performance for demanding clinical environments.
The JVC CL-S600 6MP 30° COLOR MONITOR uses advanced IPS technology in a generous 30-inch screen. This color TFT display provides exceptional image quality that meets the strictest medical standards.
With a native resolution of 3280 × 2080, clinicians can examine fine details in every scan. The wide viewing angle of 178 degrees both vertically and horizontally ensures consistent image quality from almost any position.
This monitor offers a maximum luminance of 1300 cd/m² for bright, vivid images. The calibrated luminance sits at 600 cd/m², which is ideal for diagnostic work.
A contrast ratio of 2000:1 helps separate dark and light areas clearly. This makes it easier to spot subtle differences in medical scans.
The monitor includes two DisplayPort 1.4 connections for flexible setup options. It works with standard power supplies ranging from 100V to 240V worldwide.
Radiologists use this monitor daily to review CT, MRI, and X-ray images with confidence. The high resolution helps detect small abnormalities that could easily be missed on lesser displays.
Hospitals and busy imaging centers benefit from its reliable performance during long shifts. The monitor also works exceptionally well in specialty areas like mammography, orthopedic imaging, and digital pathology.
The JVC CL-S600 carries FDA 510(k) clearance and meets CE safety standards for medical devices. These important certifications confirm that the monitor meets strict regulatory requirements for clinical use.
Standard VESA mounting options allow flexible placement in any radiology workspace or reading room. The included QA Medivisor Agent LE software helps maintain consistent image quality and calibration over time.
This medical monitor meets ANSI/AAMI ES60601-1 electrical safety standards required for healthcare devices. It also complies with FCC Part 15 requirements for electromagnetic compatibility in clinical settings.
Healthcare facilities can trust that this monitor passes strict quality control tests before leaving the factory. The RoHS compliance means it also meets important environmental and material safety standards.
At Spectrum Medical Imaging Co., we have served healthcare facilities for over 40 years as a trusted medical imaging equipment supplier. We offer the JVC CL-S600 6MP 30° COLOR MONITOR at competitive prices with fast nationwide shipping.
Our team provides expert guidance, installation support, and ongoing service for all your imaging needs. As a leading diagnostic imaging equipment dealer, we back every purchase with our satisfaction guarantee.
Call us today at 1-800-859-6162 to discuss your display needs and request a quote. Let us help you equip your facility with the best diagnostic monitors available.
