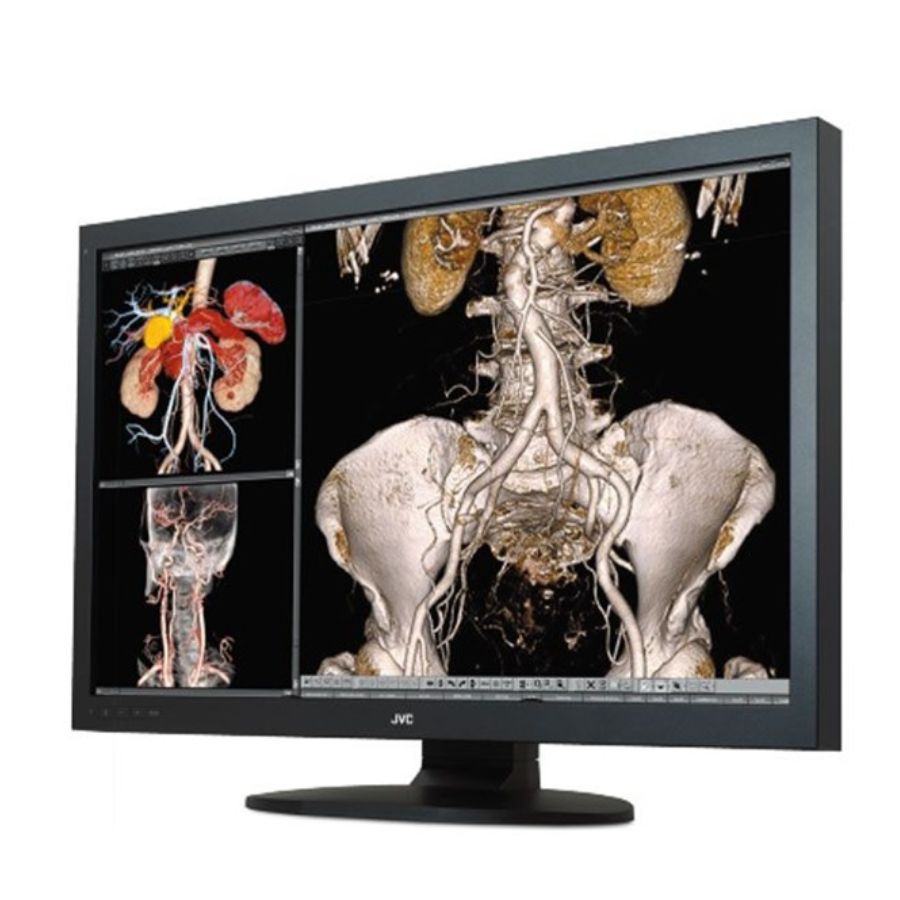

Wide screen JVC CCL650i2 6MP Color LCD Diagnostic Monitor Display for new possibilities with a streamlined workflow. Providing optimal functions for diagnostic viewing, this seamless and wide LCD improves your workflow efficiency while ensuring space and energy saving. Intended to be used in displaying and viewing medical images for diagnosis by trained medical practitioners. It is not meant to be used for digital mammography.
| Manufacturer | JVC |
|---|---|
| Display Resolution | 3280 x 2048 |
| UPC | N/A |
| Screen Technology/Type | 30.0-inch , color, TFT, IPS |
| Screen Size (diagonal) | 646 mm x 403 mm |
| Pixel Pitch | 0.197 mm x 0.197 mm |
| Viewing Angle (H, V) | 170° horizontal and vertical (typ) |
| Maximum Luminance | 800cd/m² typ |
| Calibrated Luminance | 410cd/m² / 300cd/m² (Calibrated) |
| Contrast Ratio | 1000:1 (typ) |
| Response Time | N/A |
| Video Input Connectors | DVI 1.0 compliant, DisplayPort 1.1a compliant |
| Power Input Requirements | 100V – 240V 50/60Hz |
| Power Consumption | 180W (typ) |
| Power Save Mode | N/A |
| Dimensions with Stand (W x H x D) | 696 mm x 574 mm x 244 mm |
| Dimensions without Stand (W x H x D) | N/A |
| Net Weight with Stand | 15.8 kg |
| Net Weight without Stand | 11.3 kg |
| Mounting Options | VESA standard (100 mm x 200 mm, 100 mm x 100 mm) |
| Certifications | ANSI/AAMI ES60601-1(2005)+A1(2012), CAN/CSA C22.2 NO. 60601-1(2008), CE (EN60601-1, EN60601-1-2), FCC class B, VCCI class B, ICES-3-B, FDA510(k), RCM, J-Moss, RoHS |
Medical imaging plays a key role in patient diagnosis and treatment planning across healthcare facilities worldwide. The JVC CCL650i2 Diagnostic Monitor is a high-quality display designed for healthcare settings that demand precision and reliability. This 6MP color LCD monitor helps radiologists and clinicians view detailed images with exceptional clarity. Its wide-screen format supports efficient workflows across radiology departments and imaging centers.
Choosing the right monitor matters when lives depend on accurate readings. Working with a trusted medical imaging equipment supplier ensures you get reliable products and expert support.
The JVC CCL650i2 Diagnostic Monitor features a 30-inch IPS panel with a resolution of 3280 x 2048 pixels. This high resolution allows doctors to see fine details in X-rays, CT scans, and other medical images.
The screen offers wide viewing angles of 170 degrees both horizontally and vertically. This means multiple staff members can view the screen clearly from different positions during consultations.
This monitor is designed for diagnostic viewing by trained medical professionals. It works well in radiology departments, imaging centers, and hospital reading rooms. Common Applications
Note that this monitor is not meant for digital mammography applications. It serves best in general diagnostic imaging workflows where color accuracy matters.
The JVC CCL650i2 delivers maximum luminance of 800 cd/m² for bright, clear images. Its high contrast ratio of 1000:1 produces sharp distinctions between light and dark areas.
The monitor supports both DVI and DisplayPort connections for flexible setup options. VESA mounting compatibility allows secure installation on articulating arms or wall mounts.
This monitor holds FDA 510(k) clearance and CE certification for medical use. These approvals confirm that it meets strict safety and performance requirements for clinical environments.
Additional certifications include FCC Class B and RoHS compliance. Healthcare facilities can trust that this display meets all necessary industry regulations.
Buying medical displays requires more than just finding a product online. A reliable diagnostic imaging equipment dealer offers product knowledge, service support, and fair pricing.
Look for dealers who provide installation help, warranty options, and responsive customer care. These factors make a big difference in long-term satisfaction and equipment performance.
At Spectrum Medical Imaging Co., we have served the healthcare industry for 40 years. We are a trusted medical imaging equipment supplier with strong manufacturer relationships and competitive pricing.
Our team provides expert guidance, fast shipping, and excellent customer service. We help hospitals, imaging centers, and clinics find the right solutions for their needs.
Ready to upgrade your imaging displays? Call us today at 1-800-859-6162 to speak with our sales team about the JVC CCL650i2 Diagnostic Monitor.
